Design Notes
Supported Touch Screen Components
- Video Camera Component
- Weather Component
- Web Window Component with iPad keyboard control
- Vantage System Control Component
- Cluster Control
- Button Placement
- Vertical Sliders
- Horizontal Sliders
- List Fields
- Status Fields
- Temperature Status Fields
- Load Status Fields
- Date Status Fields
- Horizontal Lines
- Vertical Lines
- Text Fields
- Image Placement
- Frames
- Custom Images
- Page Jump
- Page Timeout
- Fahrenheit & Celsius
Unsupported Touch Screen Components
- Picture Component (No Plans for Future Development)
- Energy Management Component (Future Development Plans)
- Music Component (No Future Development Plans)
If you are using a Vantage Digital Music Manager (DMM), you have the option to design your own music page using String Status Fields and Tasks to control the Vantage DMM.
If you are using Infusion Media Server, you can add a virtual DMM server to your project. Set the IP address of the PC hosting Infusion Media Server in the DMM IP address area. Program all Tasks and String Status Fields to control Source 1 of the virtual DMM.
Programming and Design Tips
For faster and more accurate response, use the temperature sensor in the status widget.
How to add fonts

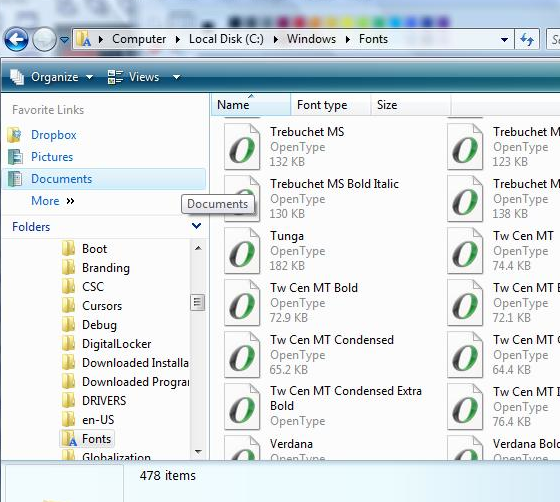

- Locate the font used in Touch Screen Designer, copy and paste it to your desktop.

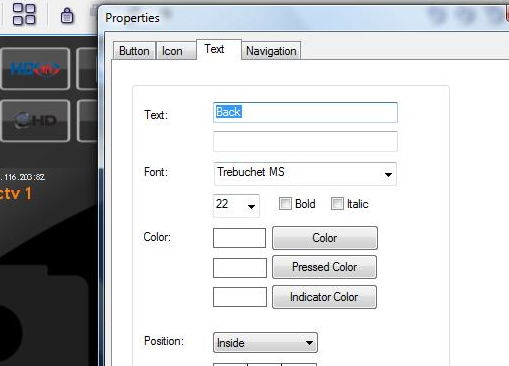

- Rename the font EXACTLY as it appears in Touch Screen Designer in the font selection dropdown box.
- Drag or add font into iTunes file sharing, Do not put the font into any folders.
We support most True and Open Type Fonts.
Some fonts will be unsupported as a result of encoding issues during the export and parsing.
If you experience a problem with a particular font, we recommend trying another one.
Native iPad Fonts (right click to save)
